| Material | Cast Iron |
| Capacity | 50-60 Hz |
| Model Number | BTG Series |
| Brand | Baltur |
| Type Of Industrial Burners | Gas Industrial Burners |
| Motor Start Up Current | AC Current |
| Model Number/Name | BTG Series |
| Start or Run Current | DC |
| Burner Operation Mode | Automatic |
| Motor Protection Level | Max |
| Type | Gas Burners |
| Electric Power | 230 V |
| Fan Motor | 0.1 to 0.2 |
| Weight | 8 to 17 Kg |
| Make | Baltur (Italy) |
Minimum order quantity: 1 Piece

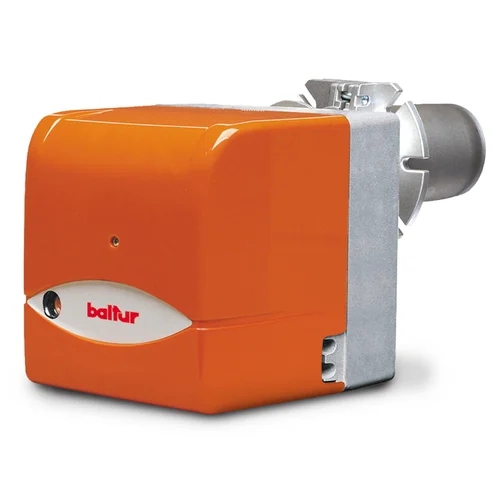

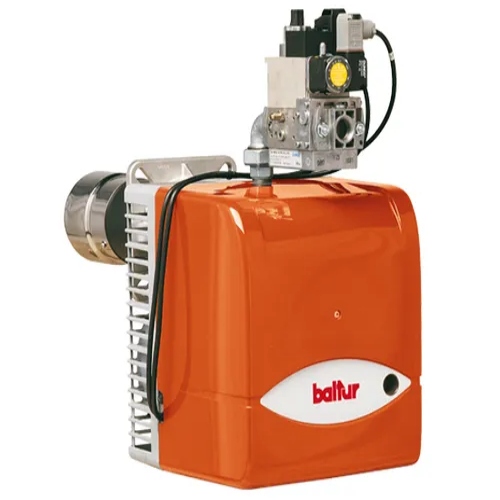

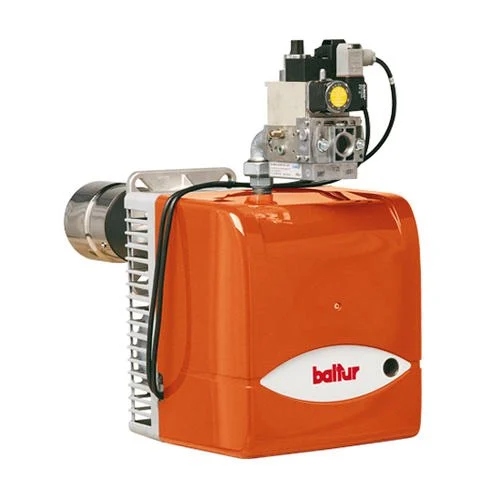

Monoblock burners from 16 kW to 280 kW in gas and light oil.
We have the following Burners in BTG series:
BTG 3, BTG 3 L200, BTG 6, BTG 6 L300, BTG 12, BTG 12 L300, BTG 11, BTG 11 L300, BTG 15, BTG 20, BTG 28 50Hz, BTG 28 60Hz
Gas burner compliant with European standard EN676. Single-stage operation. Regulating combustion air and blast-pipe. Combustion air intake with throttle damper. Manual adjusting of the air flow rate. Fully closing air damper on shutdown to avoid loss of heat through the chimney. Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler. Fail proof connectors for burner/gas train connection. Gas train exit: high. Sound-proof plastic protective cover. Flame detection by ionisation electrode with connector for micro amp meter. 7-pole socket for burner electric and thermostatic supply. Electric protection rating.
