Danfoss Ignition Transformer EBI

Power	200 VA
Phase	Single Phase
Model Name/Number	Danfoss EBI4CM
Usage/Application	Industrial Burners
Cooling Type	Dry Type/Air Cooled
Condition	New
Brand	Danfoss

Minimum order quantity: 1 Number

Ahmedabad offering Danfoss gas and Oil burner Transformers. We also offer to Danfoss make Nozzles up to 35 GPH, Oil pump, BFP, RS series, Photo cell, pressure switch for stem oil and air, Ignition transformer for Gas burner, etc.

Here we offer danfoss make oil and gas burner Transformer Danfoss Model:

Danfoss Ebi Service Kit Mounting Set
Danfoss Ignitor Ebi4 1p
Danfoss Ignitor Ebi4
Danfoss Ignitor Ebi 4 M S
Danfoss Ignitor Lead 250mm For Ebi
Danfoss Ignitor Lead 630mm For Ebi

Specifications:

Order Code	Description
	Type EBI 1P, Pri. 230V 50/60Hz, Sec. 1 X 11 KV, 50 mA, 33% ID In 3 min
	Type EBI M, Pri. 120V 50/60Hz, Sec. 2 X 6.5 KV, 40 mA, 25% ID In 3 min.
	Type EBI 1P, Pri. 120V 50/60Hz, Sec. 1 X 12 KV, 40 mA, 25% ID In 3 min.
	Type EBI C, Pri. 230V 50/60Hz, Sec. 2 X 6 KV, 20 mA, 100% ID In 3 min.

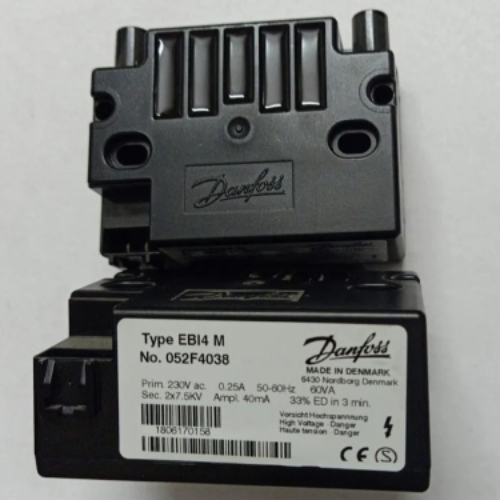

	Type: EBI4 M, Pri. 230V, 50/60Hz Sec. 2 x 7.5 kV, 40mA, 33% ED in 3 min
	Type: EBI4 M S, Pri. 230V 50/60HzSec. 2 x 7.5 kV, 40mA, 33% ED in 3 min

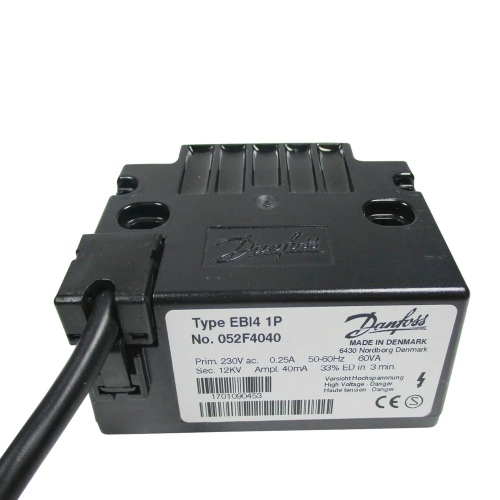

	Type: EBI4 1P S, Pri. 230V, 50/60HzSec. 1 x 11 kV, 50mA, 33% ED in 3 min.
