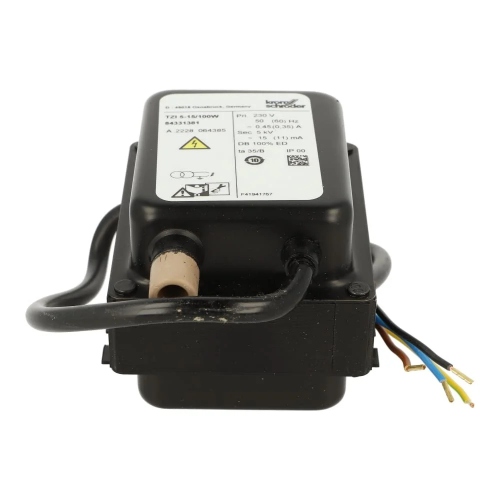

Krom Schorder Ignition Transformer TZI 5-15-100W

Power	200 VA
Phase	Single Phase
Model Name/Number	TZI 5-15-100W, TZI 5-15-100W
Usage/Application	Industrial Burner
Cooling Type	Dry Type/Air Cooled
Primary Current	230 V 50/60 Hz
Brand	Krom Schorder
E D	100%
Make	Krom Schroder

Minimum order quantity: 1 Piece

Ignition transformers TZI and TGI are designed for high-voltage spark ignition of gas burners and gas-ignited or directly ignited oil burners. The ignition transformers can also be used on burners with single-electrode operation; the ignition current and ionization current flow over a common electrode. Ignition transformer TZI fulfils the requirements for enclosure IP 20. It is suitable for installation in a control cabinet. Ignition transformer TGI in its die-cast aluminium housing meets the requirements for enclosure IP 65. It is suitable for on-site mounting near to the burner.

• Electrical ignition of gas burners
• Ignition and burner control with a single electrode possible
• For installation in a control cabinet or wall mounting
• Complying with EN 61558-2-3
• TZI 7,5-20/33R complies with CSA

Category: Ignition Transformers
