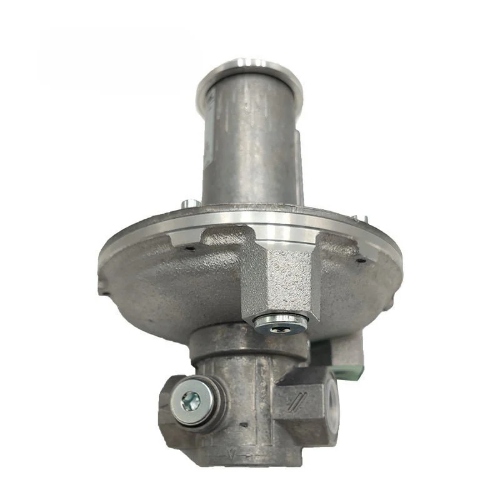

Krom Schorder Pressure Regulating Valve VGBF 40R40-3

Valve Size	3/4 inch
Model Number/Name	VGBF 40R40-3
Brand	Krom Schorder
Material	Aluminium
Finishing	Comapny Finish
Color	Silver
Media	GAS
Temperature Range	-15 to +60*C
Type	Pressure Regulating Valve
Usage	Industrial Burner Category

Minimum order quantity: 1 Piece

The spring-loaded gas pressure regulator VGBF with inlet pressure compensation diaphragm and zero shut-off serves to maintain the set outlet pressure constant despite changing gas flow rates and inlet pressures in gas pipelines. Thanks to an additional safety diaphragm, no purge line is required. For use in gas inlet sections in all sectors of the iron, steel, glass and ceramics industries as well as in commercial heat generation, such as the packaging, paper and foodstuffs industries.

• Pressure regulators for gaseous media for installation in all types of gas appliances

• Design with inlet pressure compensation diaphragm ensures high control accuracy

• High flow rate due to optimal dimensioning

• Internal impulse on VGBF..05

• No breather line required

• EC type-tested and certified

• Certified by Gosstandart pursuant to GOST-TR
