MultiblocMBDLE 415 B01 s50 - Industrial Burner Spare Parts Supplier in Ahmedabad,Gujarat

Model Number/Name	DMV-DLE 512/11
Brand	Dungs
Ambient Temperature	-15 C to +60 C
Degree Of Protection	IP 54
Frequency	50/60 Hz
Max Operating Pressure	500 mbar
Voltage	220 V – 240 V AC

Minimum order quantity: 1 Piece

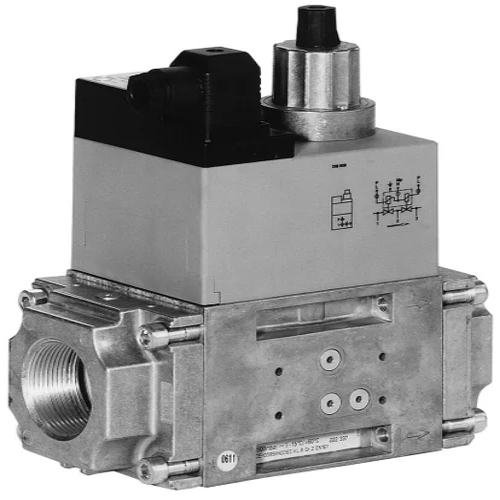

Description The DUNGS Dual Modular Valve (DMV) combines two safety shutoff valves in one compact housing, which can be wired independently or in parallel. Valve 1 (V1) of the DMV-D and DMVDLE series is fast opening and fast closing. Valve 2 (V2) of the DMV-D is fast opening, while V2 of the DMV-DLE is slow-opening for smoother light-off. Max. flow adjustment on V1 provides variable main flow on both models. Internal profiles and compact design optimize flow and provide a low pressure drop. Directly mounting the following DUNGS accessories creates a compact valve train without additional piping: – High and low gas pressure switches – Valve proving system – 1 NPT Vent line adapter

Category: Solenoid Valves, Coils and Multi block
