Pressure Gauges (0-7Kg)

Dial Size	4 inch / 100 mm
Brand	UC Brand
Use	Gas
Display Type	Analog
Pressure Type	Gauge Pressure
Connection Size	3/8 inch
Dial Type	Dry
Measuring Principle	Capsule Element

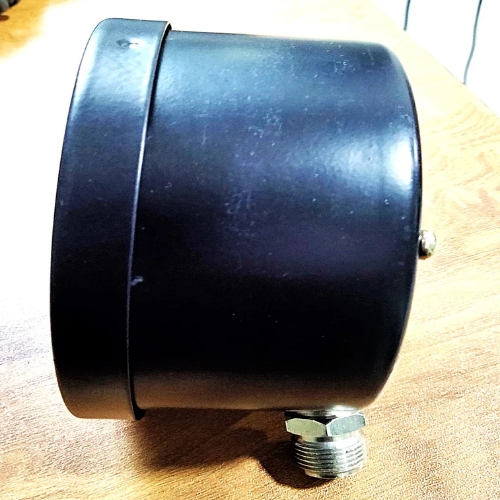

Mounting	Bottom
Material of Casing	Stainless Steel

Minimum order quantity: 1 Piece

Technical Description: Pressure Gauge (0-4 Kg/cm²) for Industrial Burners & Gas Trains

introduces a high-precision Pressure Gauge (0-4 Kg/cm² scale), designed for Industrial Burners and Gas-Trains. This rugged gauge ensures accurate fuel pressure monitoring in gas supply systems, enhancing burner efficiency and safety.

Features:

Range: 0-7 Kg/cm² (0-100 PSI)
Accuracy: ±0.1% FSD (Full Scale Deflection)
Connection: 3/8″ inch connection size (standard)
Case: MS with tempered glass
Movement: Brass/Bronze alloy for corrosion resistance

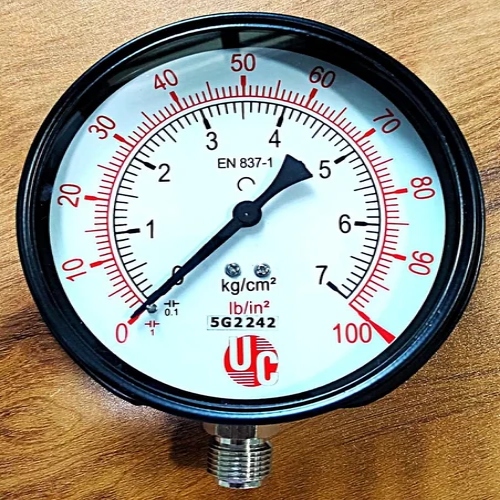

4 Inch Dial: White with black markings for clear visibility
Liquid Filling Option: Glycerin for vibration resistance

Ideal for industrial heating systems, process burners, and gas train assemblies, this gauge ensures reliable performance under high-pressure fuel supply conditions.

Category: Pressure Gauge
