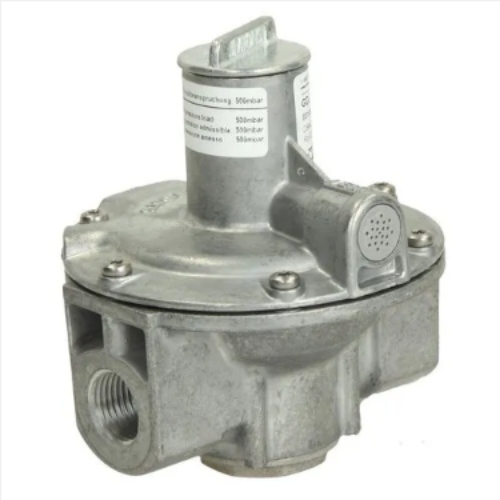

Krom Schorder Air and Gas Pressure Ratio Controller GDJ20R04

Model Number	GDJ20R04
Media	Air
Brand	Krom Schorder
Size	Nominal size
Model Number/Name	GDJ20R04
Temperature Range	20 to +60*C
Type	Pressure regulator valve
Diaphragm	Perbunan.
Temperature	-20 to +60*C

Minimum order quantity: 1 Piece

The spring-loaded gas pressure regulator GDJ with inlet pressure compensation diaphragm and zero shut-off serves to maintain the set outlet pressure constant despite changing gas flow rates and inlet pressures in gas pipelines. Thanks to an additional safety diaphragm, no breather line is required. For controlling the pressure of the gas and air supply to gas burners and gas appliances in industry and the heating sector.

• Universal pressure regulator for gaseous media
• Design with inlet pressure compensation diaphragm ensures high control accuracy
• Internal impulse
• No breather line required
• EC type-tested and certified
• Certified by Gosstandart pursuant to GOST-TR
