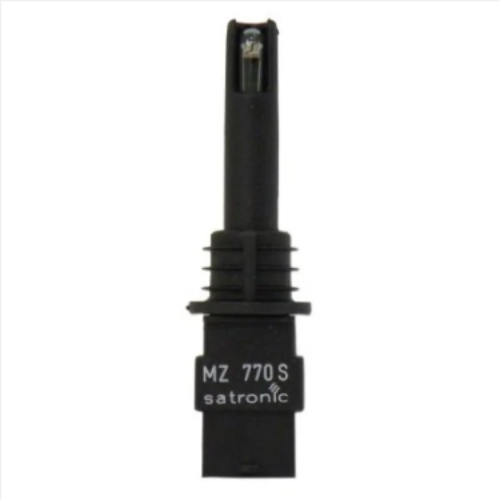

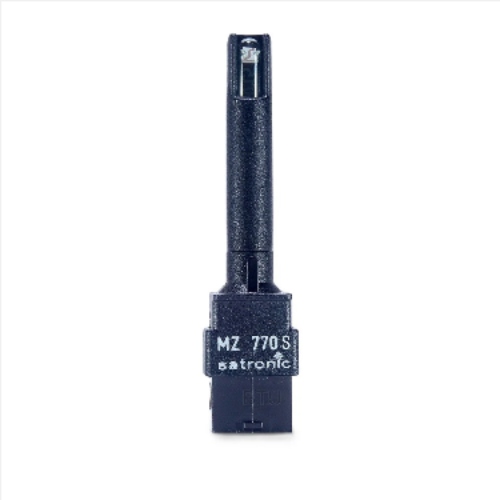

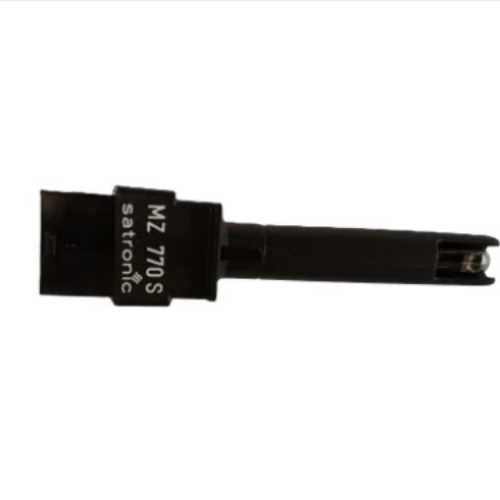

The Satronic MZ 770S is a photocell sensor designed to monitor the presence of an oil flame in combustion systems. It works in conjunction with Satronic (Honeywell) control units to ensure safe and efficient burner operation.

Key Features:

• Function: Detects the presence of an oil flame, enabling the control unit to manage burner operations effectively. If the flame is not detected, the sensor signals the control unit to shut off the oil supply, preventing unburned fuel accumulation.
• Compatibility: Compatible with various Satronic control boxes, including models TF830, TF832, TF834, and TF836.



• Design Variants:
  • Short Version: Overall length of 67.5 mm (approximately 2.5 inches).
  • Long Version: Overall length of 105.5 mm.
• Installation: Features a plug-in design for straightforward installation and replacement.

Regular maintenance and timely replacement of the MZ 770S photocell are essential to ensure the reliable and safe operation of oil burners.
